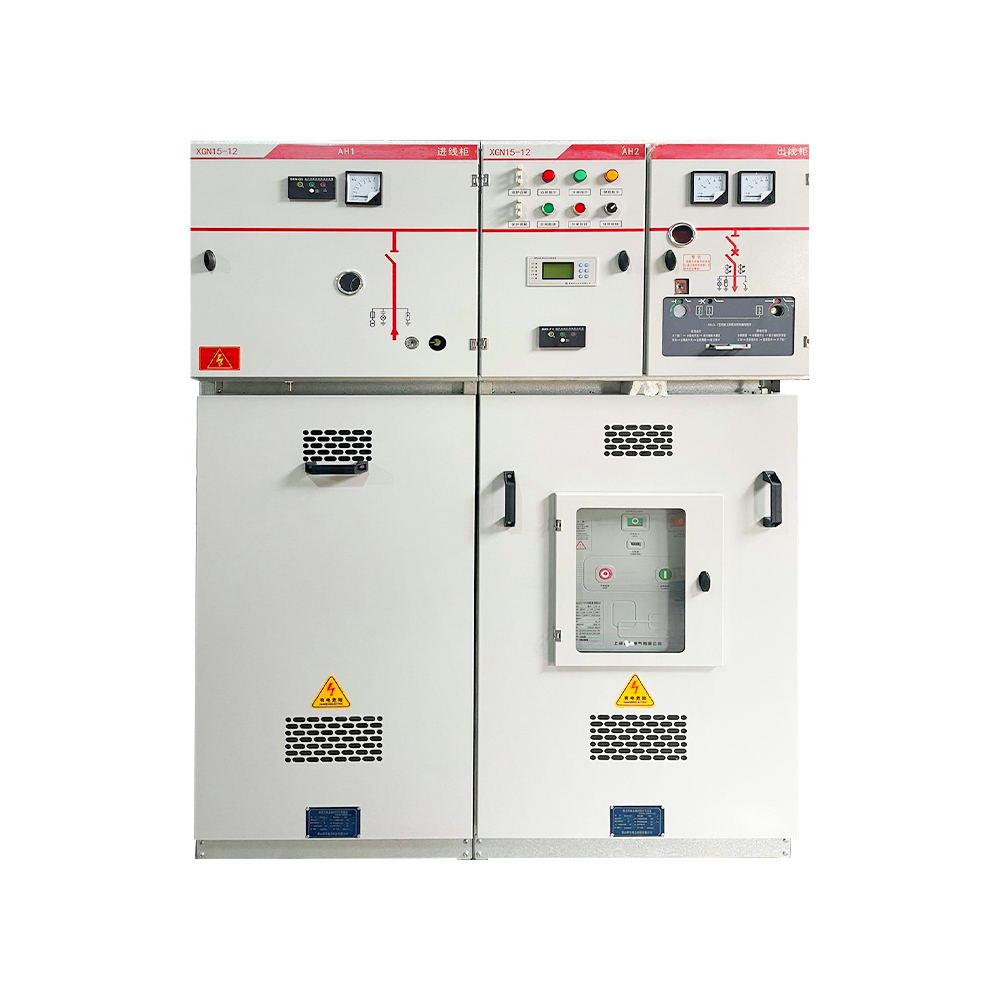

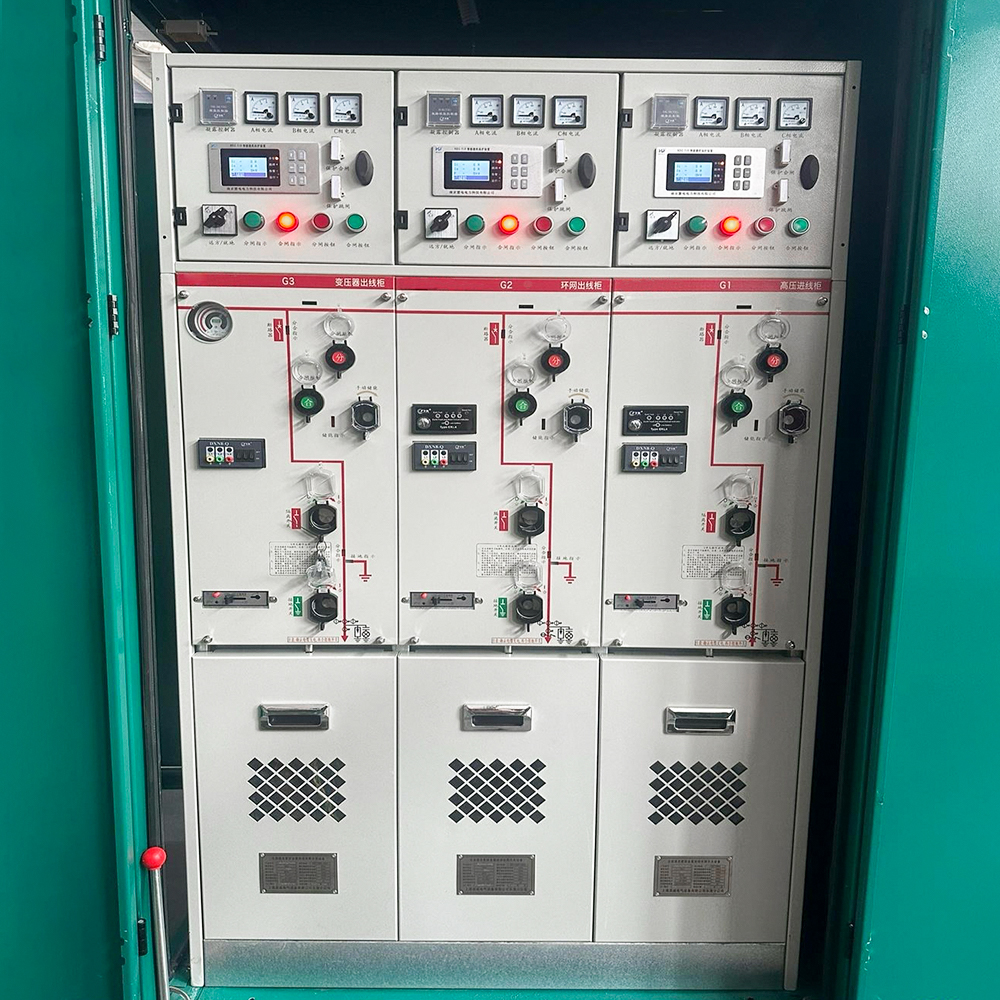

XGN15-24 SF6 Insulated Ring Main Unit (RMU)

The XGN15-24 unit-type sulfur hexafluoride ring main unit is a new generation of metal-enclosed switchgear. The main switch uses a load switch with sulfur hexafluoride and environmentally friendly gas as the insulating medium. The entire cabinet is air-insulated, offering advantages such as compact structure and expandability, making it suitable for power distribution automation systems. This ring main unit is suitable for three-phase AC 50Hz indoor power distribution systems with a rated voltage of 24kV. It can be widely used in industrial and civil cable ring network power supply and terminal power distribution applications, especially in small secondary substations, switching stations, industrial and mining enterprises, residential communities, airports, railways, tunnels, high-rise buildings, and other power systems, serving as a key device for power reception and distribution.

  • Specification
  • About Hengyuan
  • Contact Us
Rated voltage 24kV
Rated lightning impulse withstand voltage Alternate and relative 125kV
Between the breaks 145kV
1-minute power frequency withstand voltage Alternate and relative 65kV
Between the breaks 79kV
Rated current Main bus 630A
Rated short-time withstand current Main circuit 20kA
Rated peak withstand current 50kA
Transfer current 1400A
Protection level IP4X
