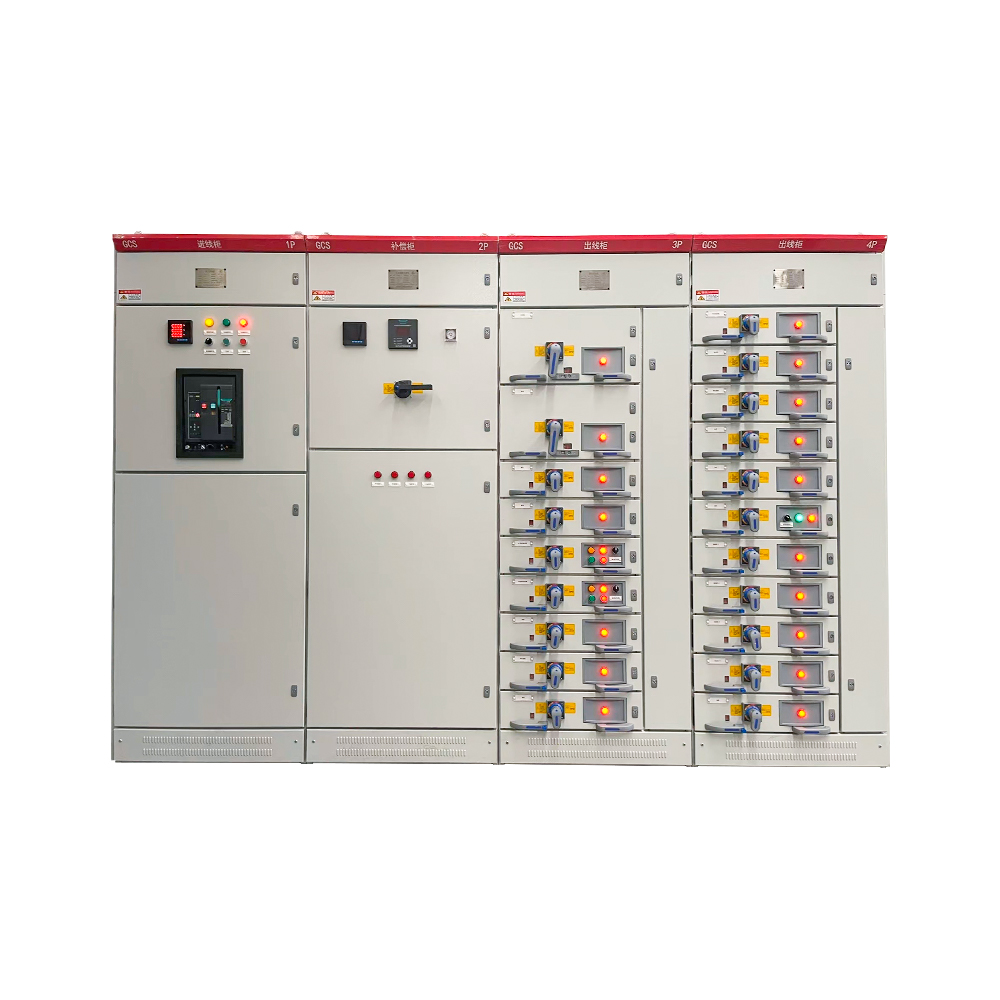

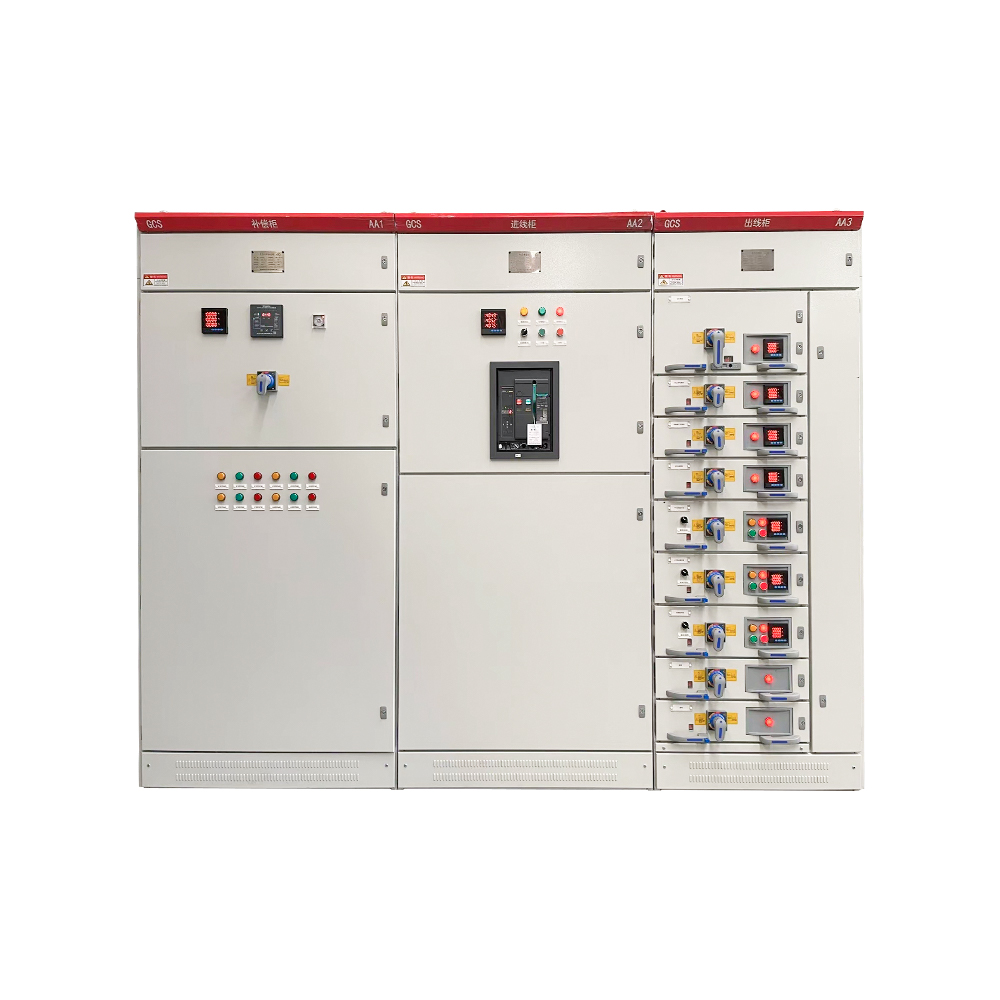

GCS Low Voltage Withdrawable Switchgear

The device is suitable for power distribution systems in industries such as power plants, petroleum, chemical, metallurgy, textile, and high-rise buildings. In places with high automation, such as large power plants and petrochemical systems, where computer interfaces are required, it is used as a low-voltage complete set of power distribution equipment for power distribution, centralized control of motors, and reactive power compensation in power generation and supply systems with a three-phase AC frequency of 50 (60) Hz, a rated operating voltage of 380V (400) (660), and a rated current of 4000A and below.

  • Specification
  • About Hengyuan
  • Contact Us
Main technical parameters
Rated insulation voltage Exchange 660(1000)V
Rated operating voltage
Main circuit 380(660)V
Auxiliary circuit AC 24, 36, 48, 110, 220, 380V
DC 110, 220V
Rated frequency 50(60)HZ
Rated current of horizontal bus ≤4000A
Vertical busbar 1000A
Rated peak withstand current 105(176)kA
Rated short-time withstand current 50(80)kA
