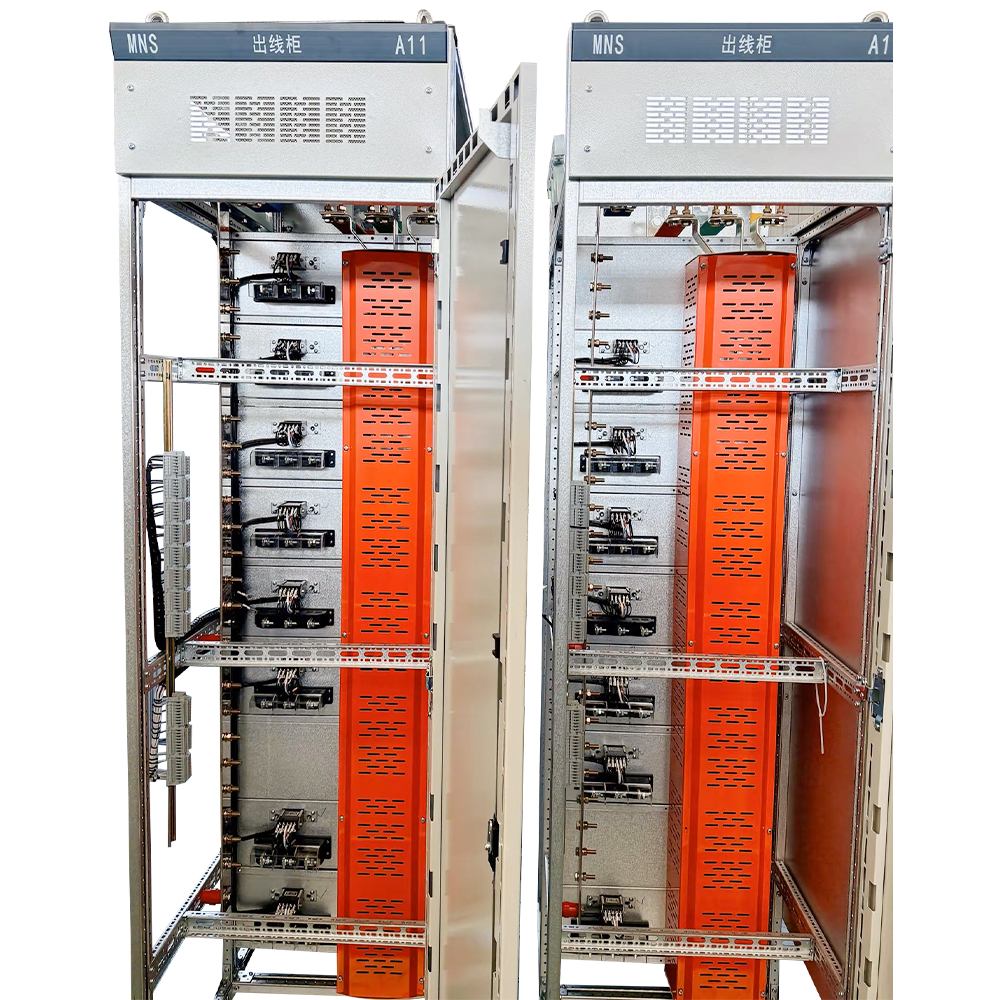

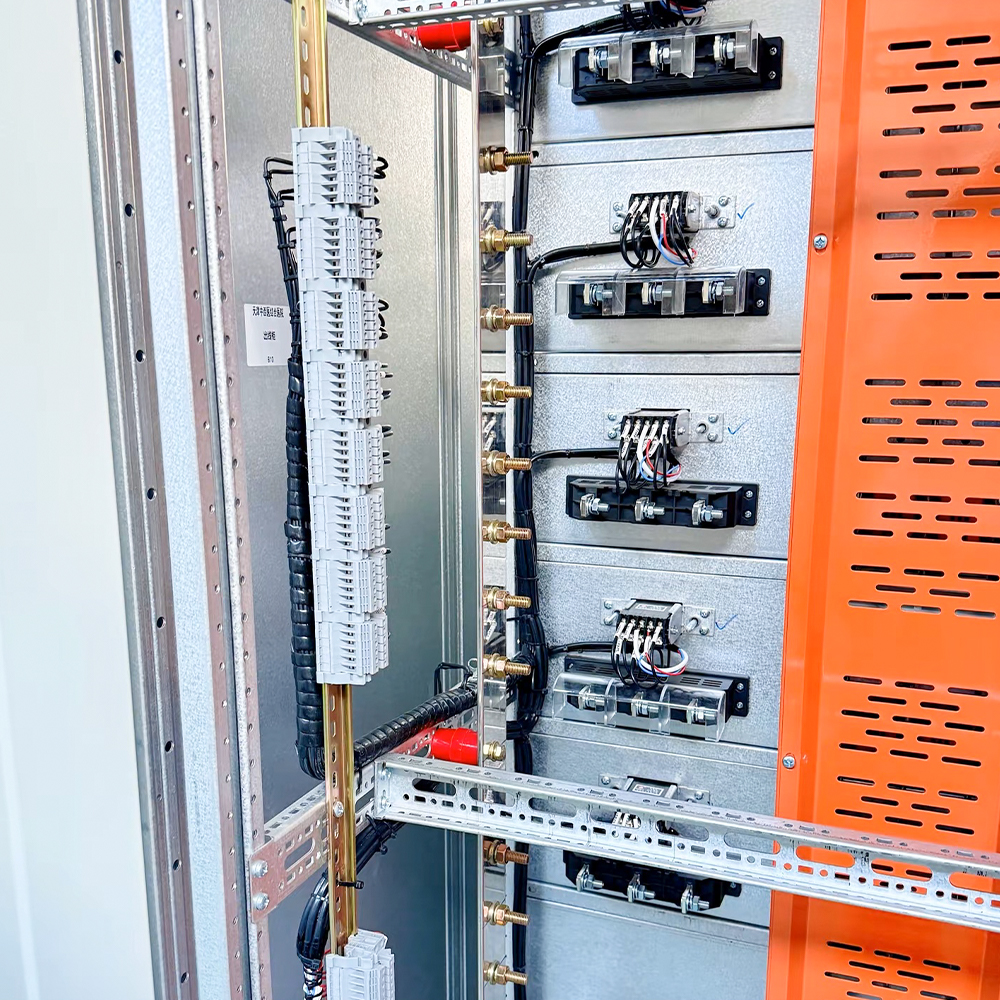

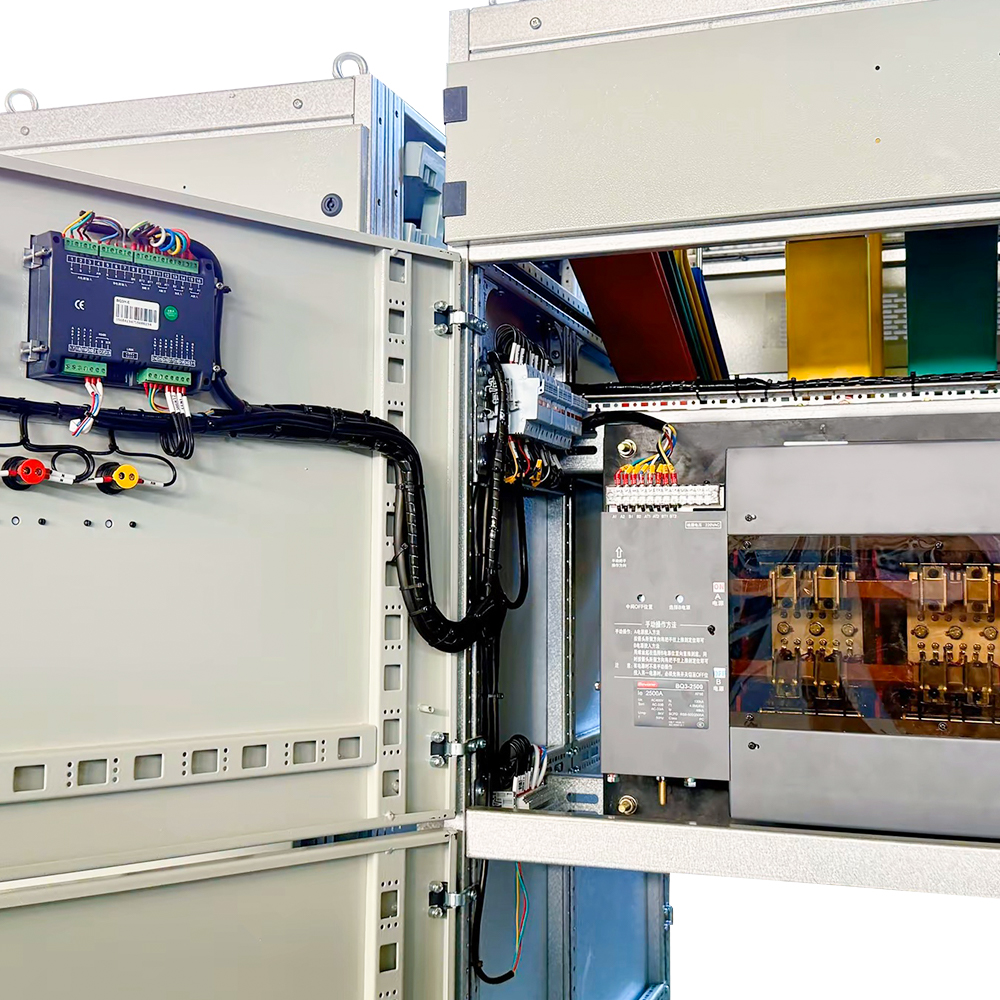

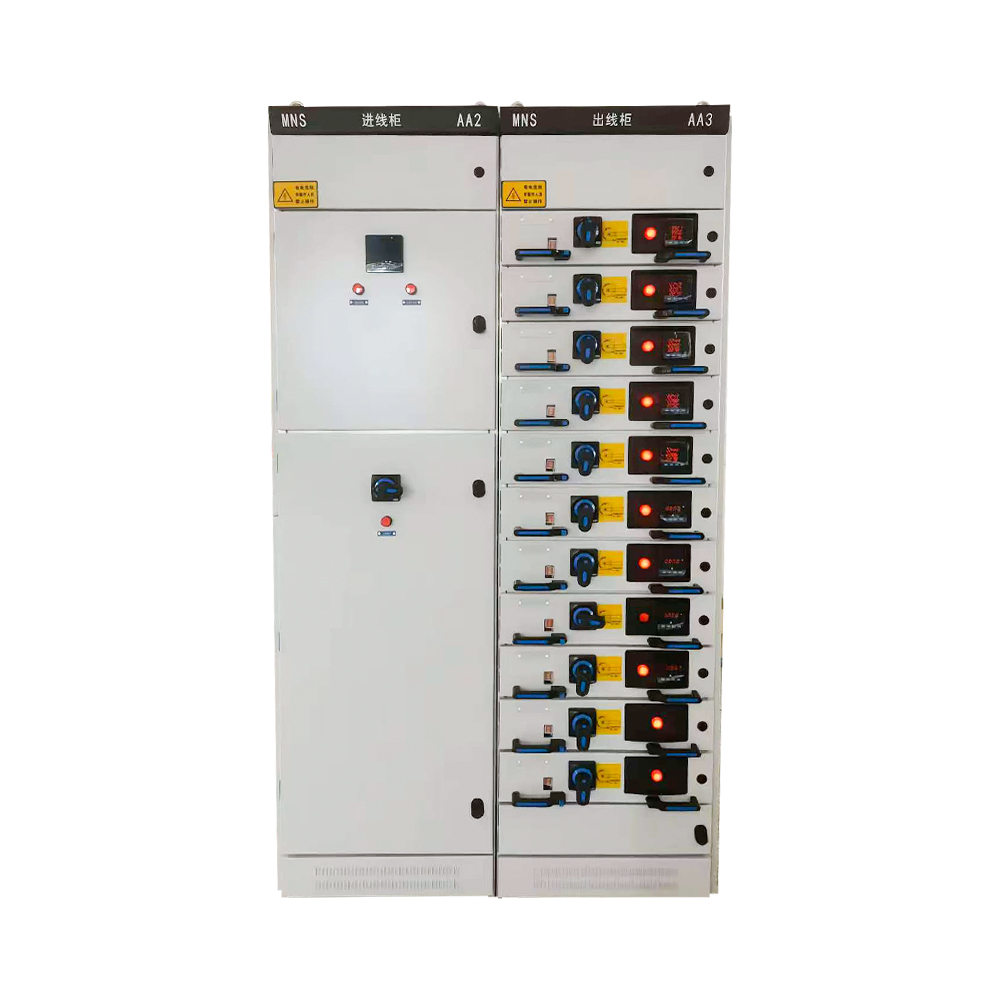

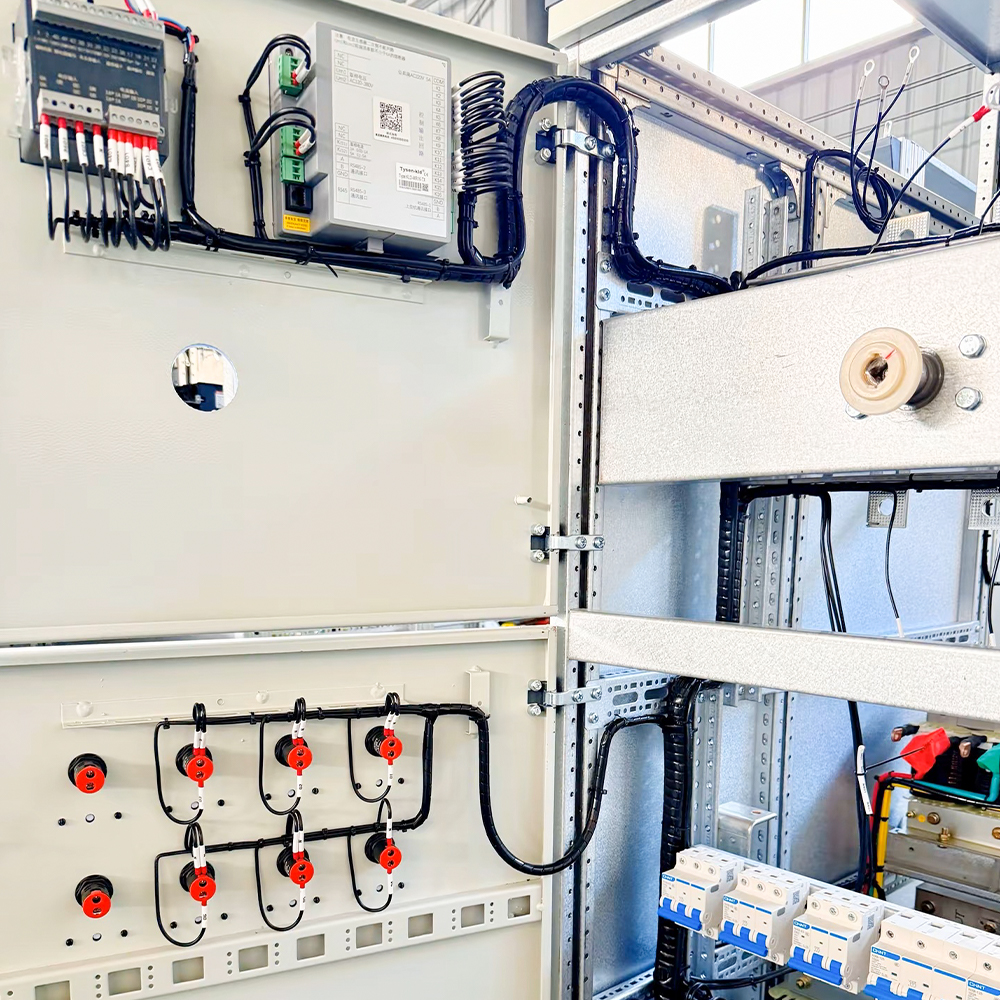

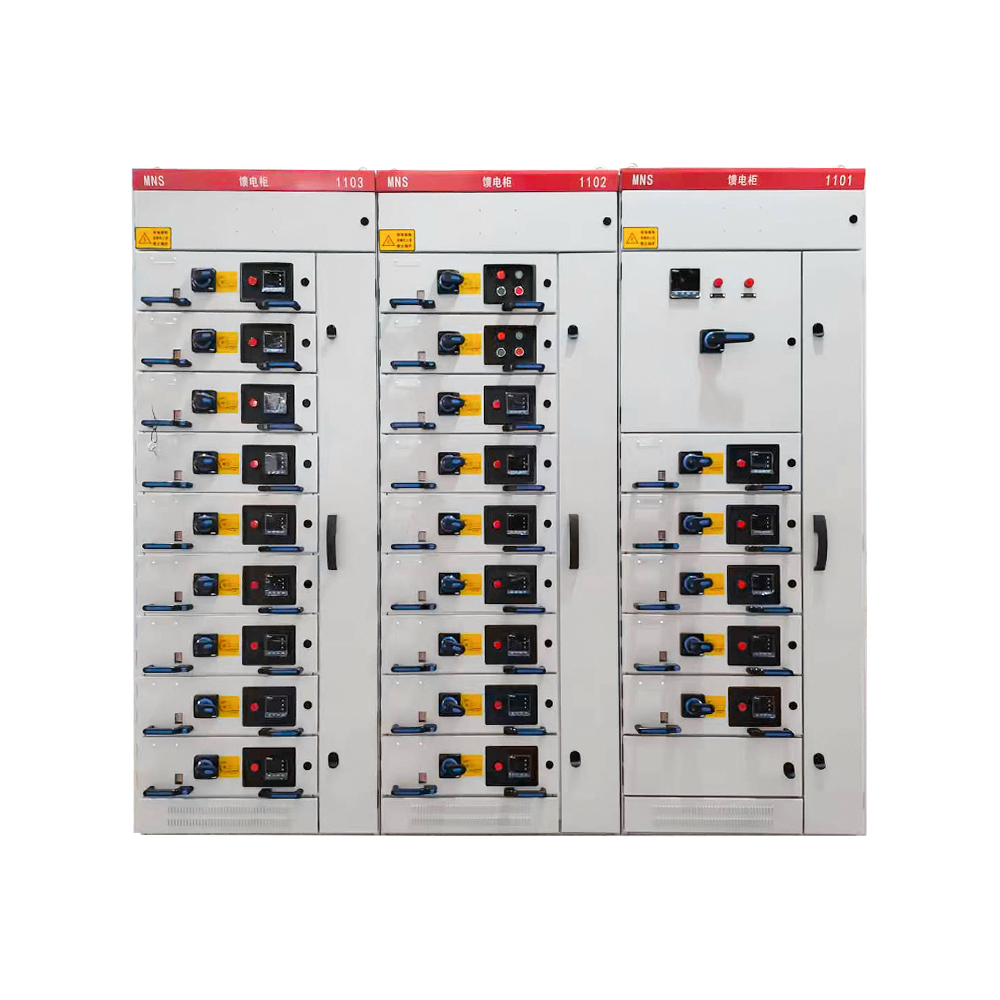

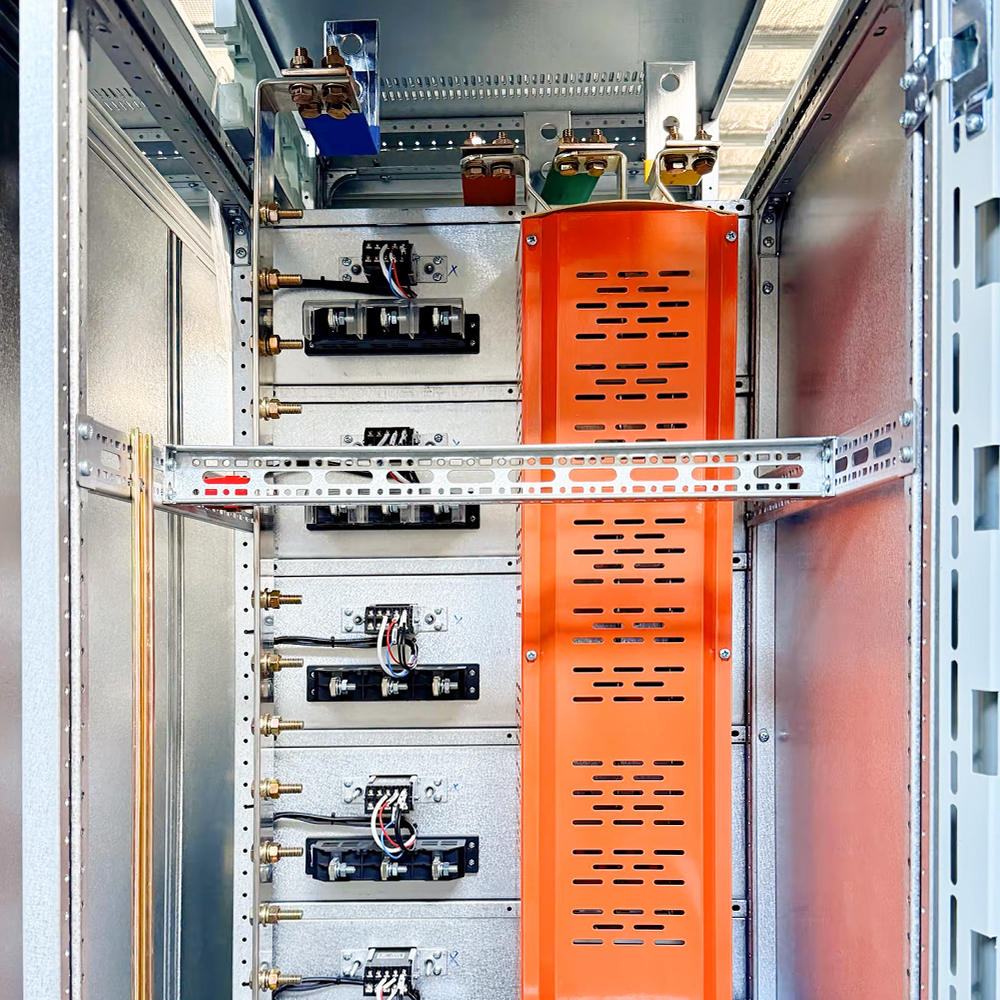

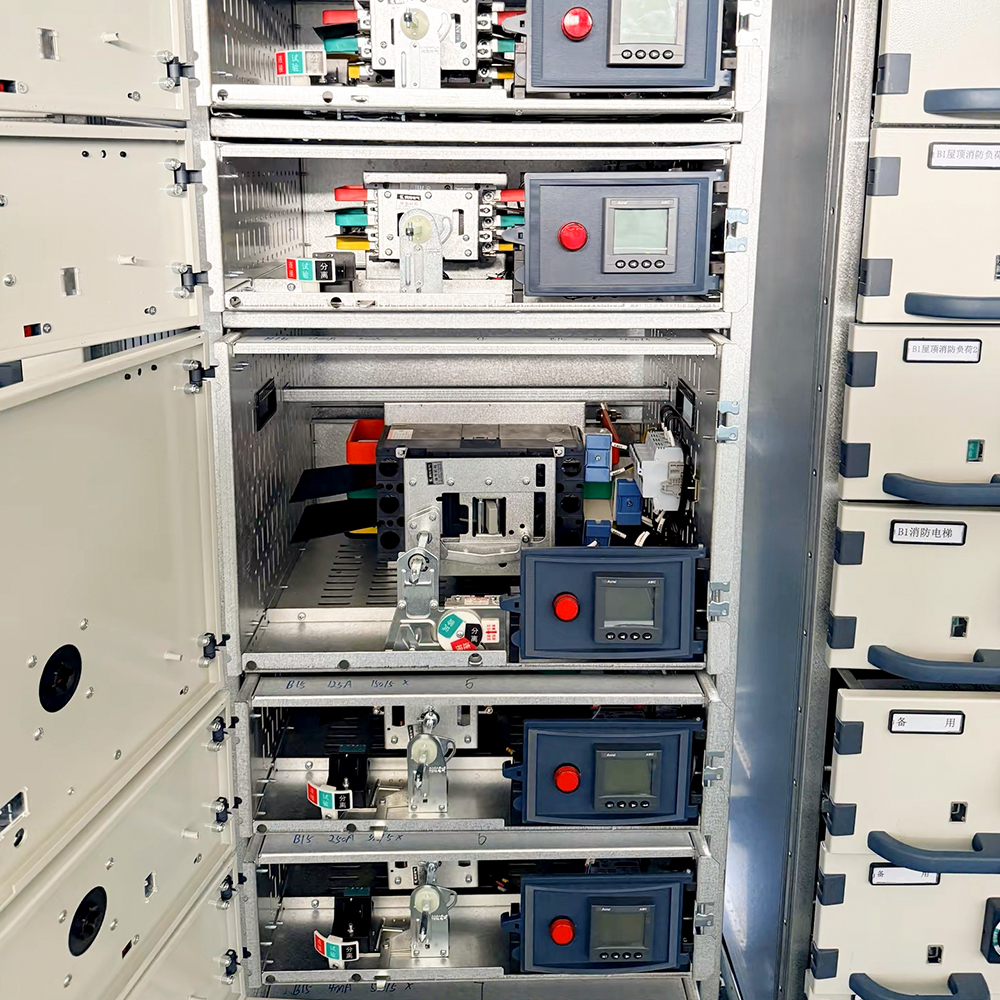

MNS Low Voltage Withdrawable Switchgear

This device is a modular low-voltage switchgear assembled in a factory using standard components. It is suitable for AC 50-60Hz power supply systems with a rated operating voltage of 660V and below, used for controlling power generation, transmission, distribution, power conversion, and power consumption equipment.

  • Specification
  • About Hengyuan
  • Contact Us
Main technical parameters
Rated insulation voltage 660V
Rated operating voltage 380V, 660V

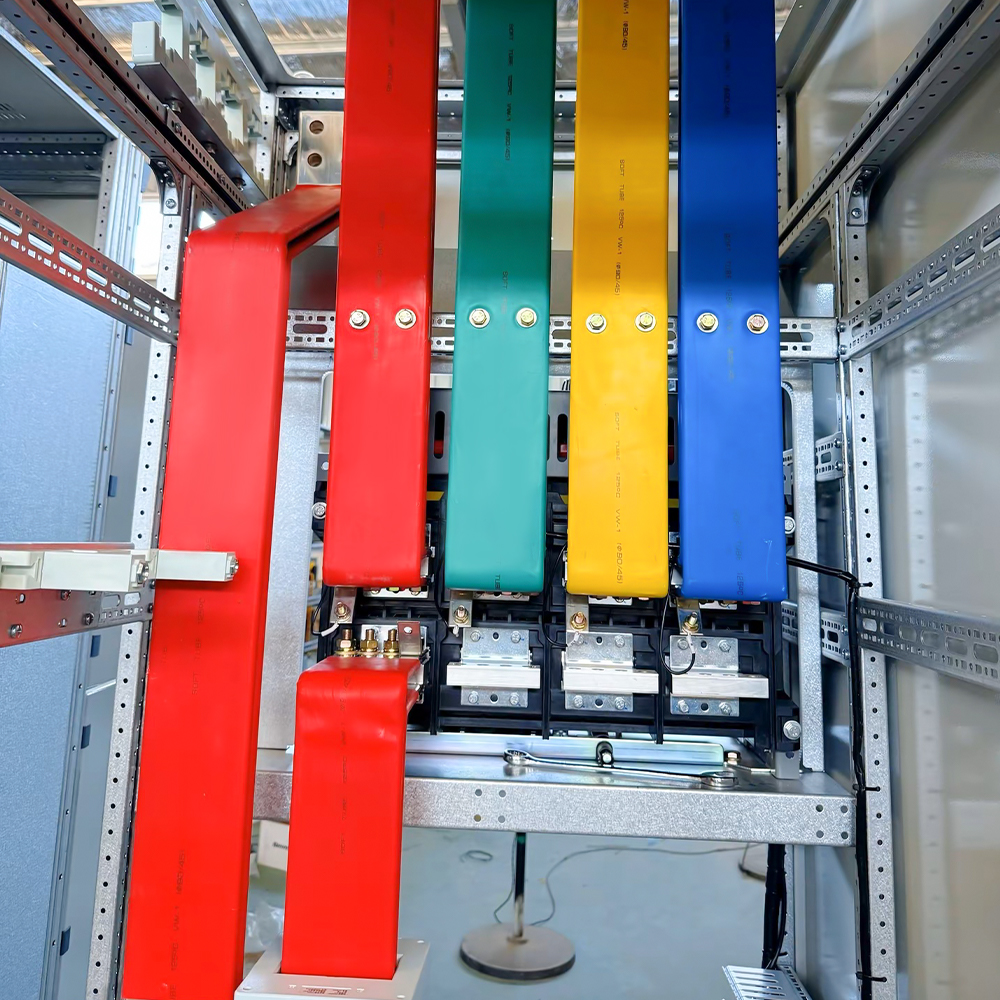

Maximum operating current of main bus 5500A(IP00)
4700A (IP30)
Short-time (1s) withstand current of main bus 100kA (RMS)
Short-time peak current of main bus 250kA (maximum value)

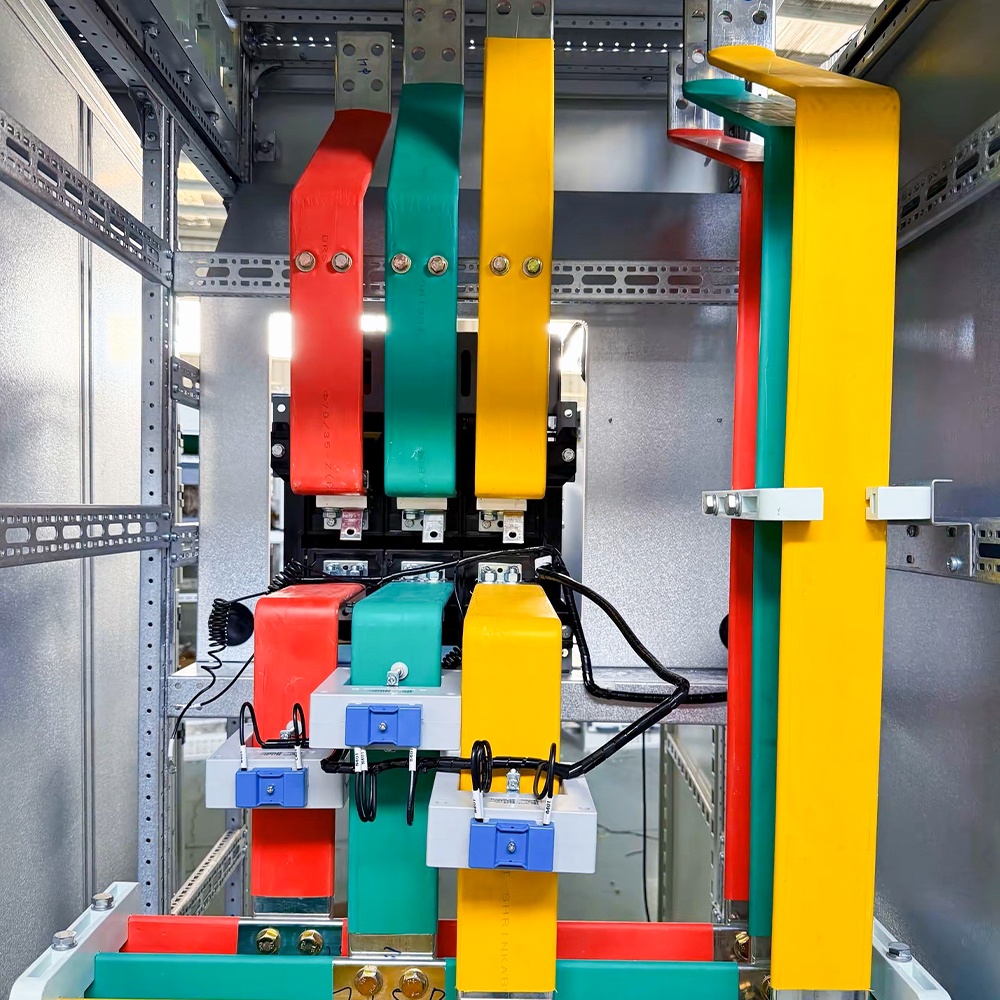

Maximum operating current of distribution busbar (vertical busbar) 1000A
Short-time peak current of distribution bus (vertical bus) Standard type 90kA (maximum) Enhanced type 130kA (maximum)
